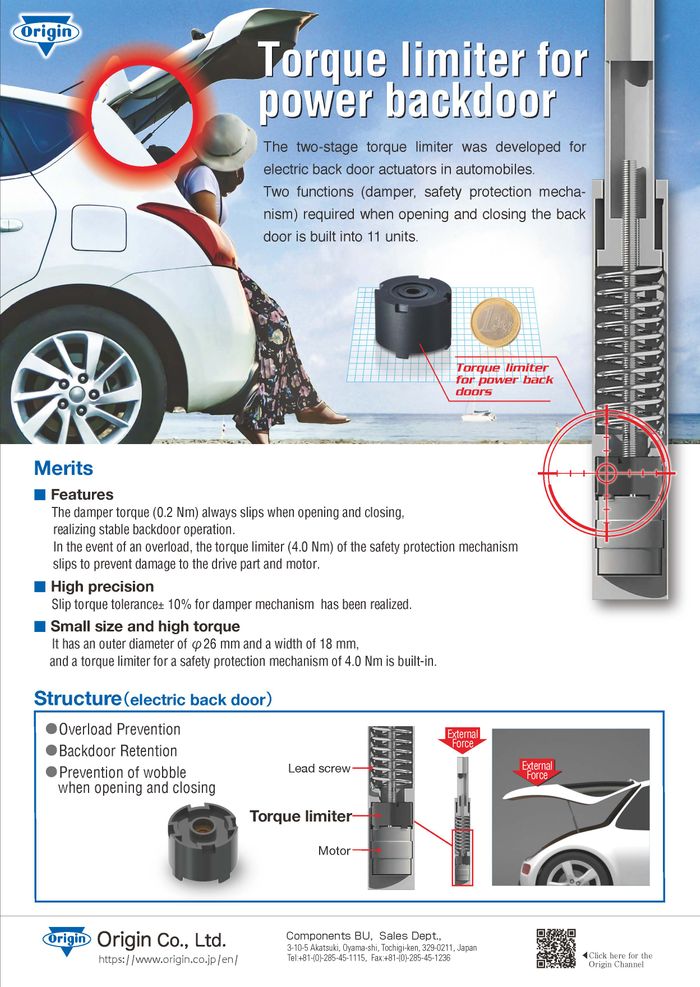

The damper torque (0.2Nm) always slips when opening and closing, realizing stable backdoor operation. In the event of an overload, the torque limiter (4.0Nm) of the safety protection mechanism slips to prevent damage to the drive part and motor.

* High precision

Slip torque tolerance +/- 10% for damper mechanism has been realized.

* Small size and high torque

It has an outer diameter of 26mm and a width of 18mm, and a torque limiter for a safety protection mechanism of 4.0N, is built-in.
